DJI Zenmuse P1 + SHIELD 1 YEAR

Includes DJI Shield coverage for one year

Accuracy without GCP: 3cm horizontal / 5cm vertical
High efficiency: Coverage of 3 sq km in a single flight
45MP Full-Frame Sensor
3-axis gimbal Smart Oblique Capture
Mechanical shutter up to 1/2000 second
TimeSync 2.0 microsecond synchronization

A powerful and precise camera for drone detection.

High precision aerial mapping solution

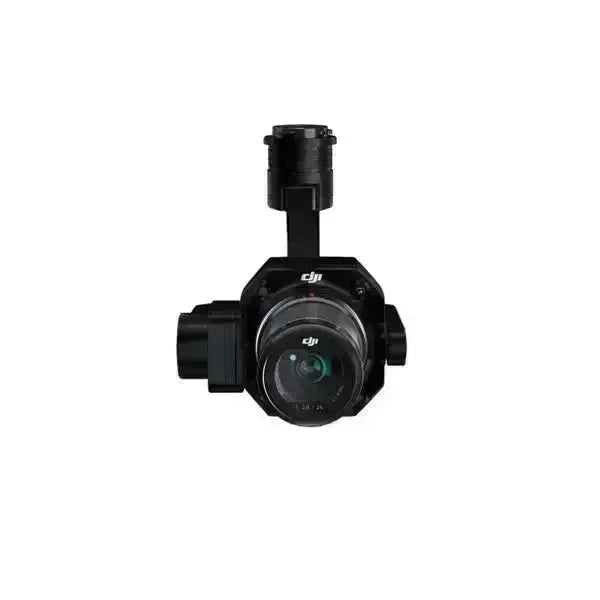

The DJI Zenmuse P1 is a versatile, high-performance sensing payload designed for DJI's flagship commercial drone, the M300 RTK.

The camera is integrated with a 45MP full-frame CMOS sensor with 24mm, 35mm and 50mm lens options and a 3-axis stabilized gimbal.

When combined with the M300 RTK drone and mapping software package, DJI Terra, the P1 camera provides an efficient and high-precision aerial photogrammetry solution.

The integration of the P1 with the M300 RTK significantly increases productivity, being up to 10 times more efficient than the Phantom 4 RTK for orthomosaic and oblique mapping missions.

Highlights include:

• 45MP full frame CMOS.
• Get 3cm horizontal accuracy and 5cm vertical accuracy with no ground control points (3cm GSD, 75% front overlap ratio and 55% side overlap ratio).
• High efficiency: coverage of an area of ​​3 km² during a single flight (GSD of 3 cm, with front overlap ratio of 75% and lateral overlap ratio of 55%).
• 3-axis stabilized gimbal with Smart Oblique Capture.
• Mechanical global shutter (obtained with mechanical shutter): shutter speed of 1 / 2000s.
• TimeSync 2.0: Synchronize flight controller, RTK, gimbal and camera in milliseconds.

MAIN FEATURES OF P1

Collect quality data quickly and securely.

Multiple operating modes

The P1 camera has a range of operating modes to allow surveying professionals to capture the best possible data.

These include:

• 2D Vegetable Garden: Collect accurate data quickly and easily, which meets 1: 500 and 1: 1000 cadastral accuracy standards.
• 3D Oblique: Multi-angle oblique image data acquired for 3D modeling is provided efficiently and concisely, which can be widely used in many industries such as urban planning, cadastral survey, security command, etc., Helping the real 3D and smart cities construction.
• Detailed reconstruction: High resolution data images can be obtained efficiently, to help restore the fine texture, structure and characteristics of the terrain and objects. It can be widely used in the reconstruction of prestigious buildings, in the protection of ancient buildings, in water conservation engineering and in geological surveys.
• Real-Time Reconstruction: Combine with DJI Terra to get real-time geographic information of a large area to assist emergency rescue sites.

Smart Oblique Acquisition

Smart Oblique Capture allows the P1 to achieve comparable efficiency in oblique mapping missions compared to five-lens oblique payloads.

• Swing Pattern: When the P1 performs an oblique mission in five directions, it will swing in five directions at -60 degrees. It will only capture images within the workspace, increasing post-processing efficiency by 20% -50%.
• High Oblique Operating Efficiency: The P1 will perform the multi-angle oscillating shooting pattern to greatly improve the operating efficiency on a single lens camera. The working area with the P1 can reach 7.5 square kilometers (3cm GSD, 75% front overlap ratio, 65% side overlap ratio) in just one day.
• Greater efficiency: The P1 has greater efficiency in oblique missions than other single-camera payloads.

Multiple Premier Lens Options

A 35mm lens is suitable for most mapping missions, but if the drone needs to operate at a higher altitude while maintaining the same resolution, the 50mm lens option is available.

High accuracy with TimeSync 2.0
