SHINING 3D EinScan Rigil Lite – Professional All-In-One Laser 3D Scanner
Absolute scanning freedom. No cables, no PC required.

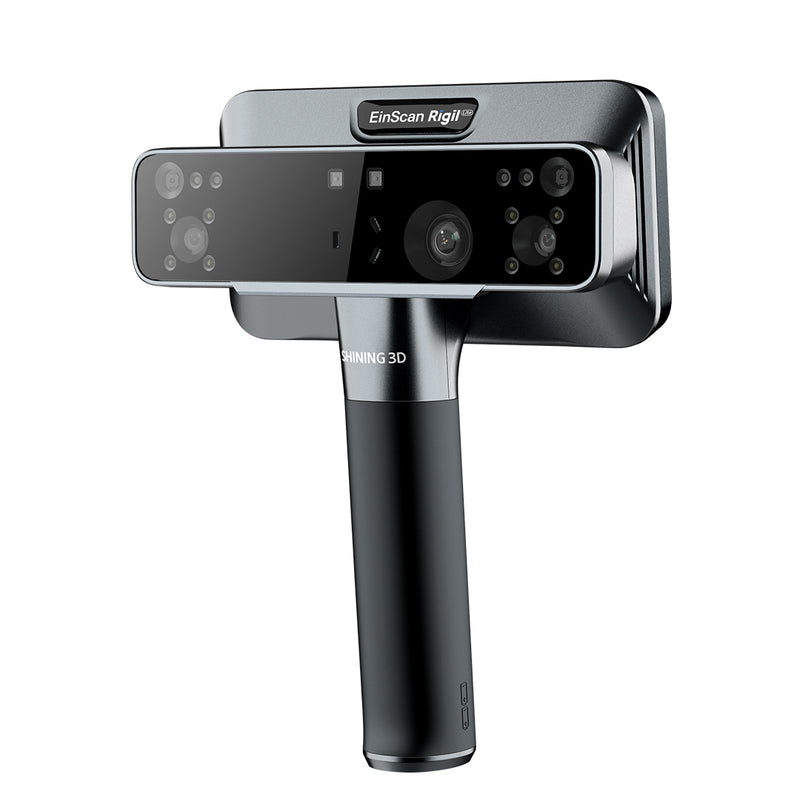

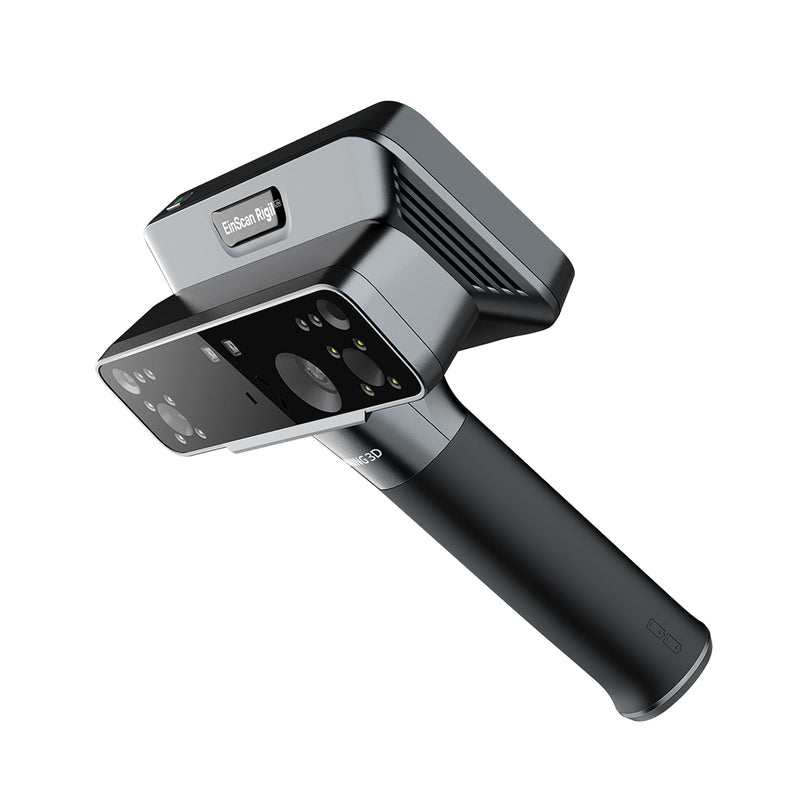

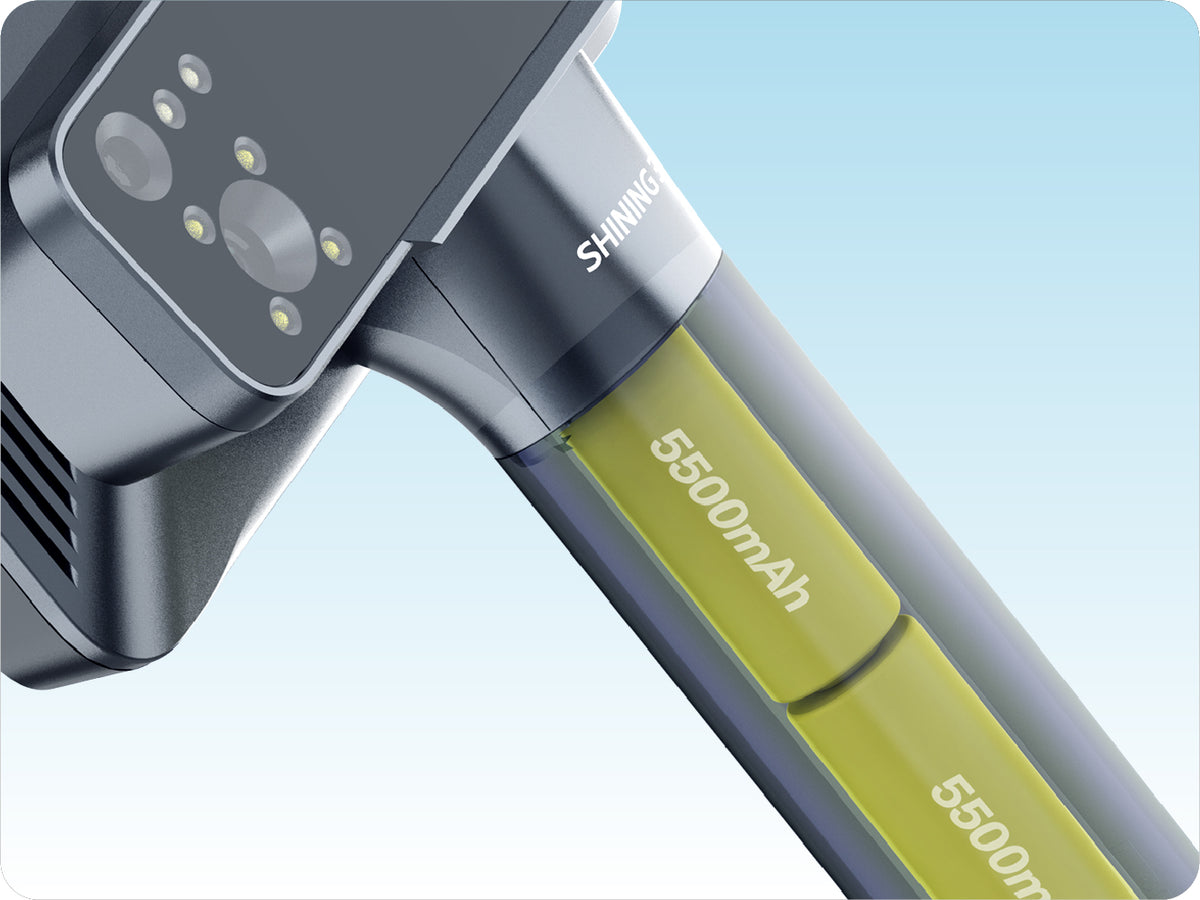

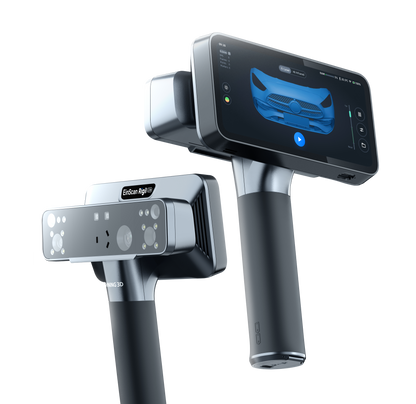

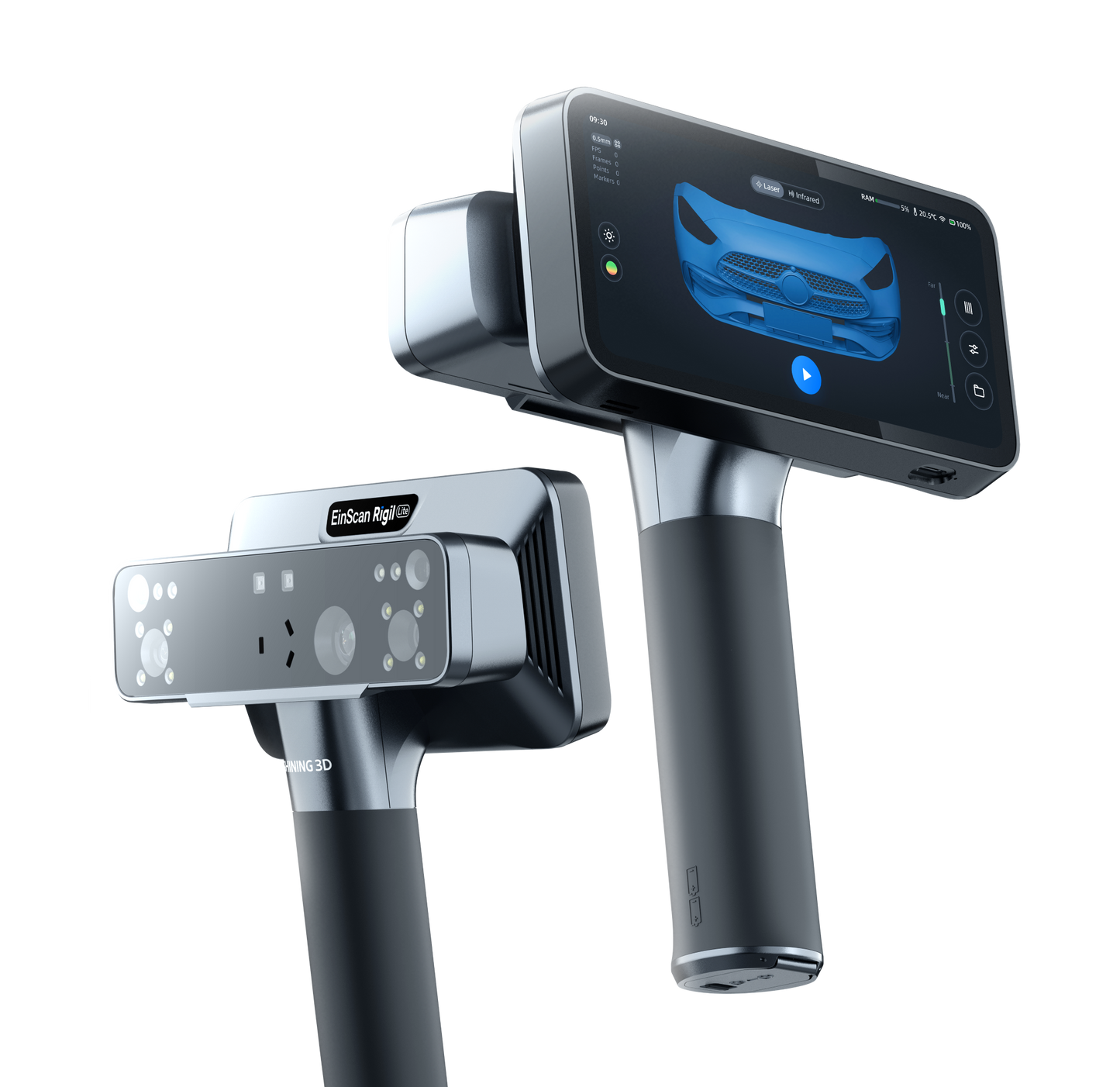

The EinScan Rigil Lite is SHINING 3D's all-in-one portable 3D scanner, designed to offer maximum versatility, precision, and portability in a single compact and ergonomic device. Thanks to its standalone architecture, it integrates a dedicated 8-core processor, a 6.4" 2K AMOLED touch screen, and a dual power system with replaceable batteries (5500 mAh x2), allowing you to scan and process 3D data anywhere, without the need for a connected PC.
Strengths & Key Features

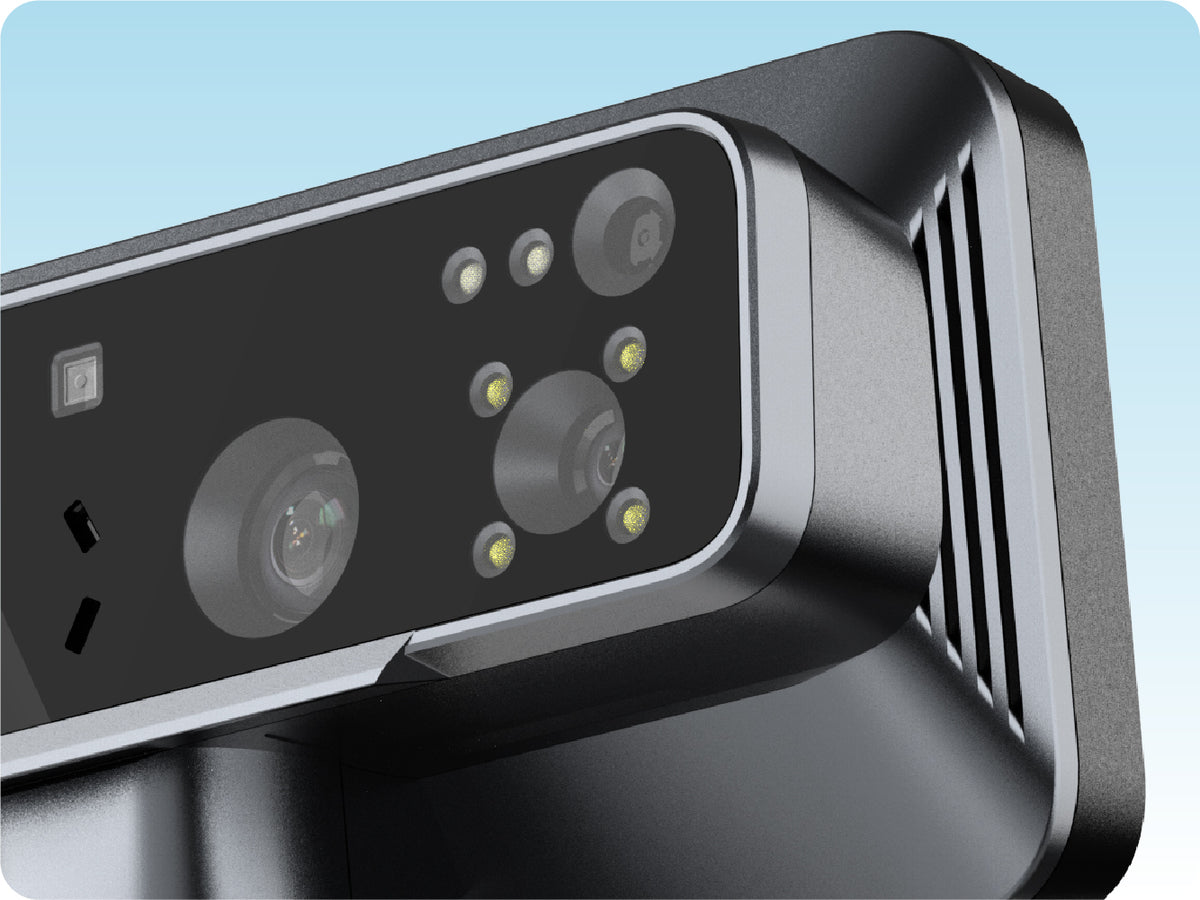

- Hybrid Dual Light Source System:
- HD Blue Laser (17+17 Cross Lines + 7 Parallel Lines): Ideal for capturing fine details, dark or reflective surfaces at speeds up to 2,940,000 points per second and a resolution up to 0.05 mm.
- IR VCSEL Infrared: Perfect for medium and large objects and visually safe body/portrait scanning, with an ultra-fast acquisition rate of up to 16,000,000 points per second and a working distance of up to 1.5 meters.
- Marker-Free Scanning & Hybrid Tracking: Allows complex geometries to be acquired with minimal preparation using adhesive targets (markers) thanks to advanced tracking based on geometric features and textures.
- High Definition Texture (5 MP): The integrated 5 Megapixel color camera captures realistic chromatic details in both modes (Laser and IR).
- 100% On-Device Workflow:
- Complete management of acquisition, editing, mesh alignment, measurements, and direct export from the integrated touch display.
- Direct data transfer and processing or saving to SHINING 3D Cloud via Wi-Fi 6.
- 3 Flexible Operating Modes: Can be used in Standalone (independent), Wireless PC or Wired PC (USB-C) mode.
Technical Specifications Comparison: EinScan Rigil vs. EinScan Rigil Lite
| Feature / Specification | EinScan Rigil | EinScan Rigil Lite |
| Light Source (HD Laser) |
25 + 25 blue laser cross lines + 7 blue parallel laser lines |
17 + 17 blue laser cross lines
+ 7 blue parallel laser lines
|
| Light Source (IR Rapid) |
IR VCSEL |
IR VCSEL |
| Volumetric Accuracy (HD Laser) |
Up to 0.04 + 0.06 mm/m (Certified) |
Up to 0.04 + 0.06 mm/m |
| Volumetric Accuracy (IR Rapid) |
Up to 0.1 + 0.4 mm/m |
Up to 0.1 + 0.4 mm/m |
| Resolution (HD Laser / IR Rapid) |
0.05 - 10 mm / 0.2 - 10 mm |
0.05 - 10 mm / 0.2 - 10 mm |
| Scanning Speed (HD Laser) |
Up to 4,800,000 pts/s |
Up to 2,940,000 pts/s
|
| Scanning Speed (IR Rapid) |
Up to 16,000,000 pts/s |
Up to 16,000,000 pts/s |
| Working Distance (HD Laser / IR) |
170 - 550 mm / 160 - 1500 mm |
170 - 550 mm / 160 - 1500 mm |
| Alignment Mode |
Global Markers, Markers, Features, Texture, Hybrid |
Global Markers, Markers, Features, Texture, Hybrid |
| Camera Resolution |
3D: 2.3 MP × 2 (Laser), 1.3 MP × 2 (IR) Texture: 5 MP |
3D: 2.3 MP × 2 (Laser), 1.3 MP × 2 (IR) Texture: 5 MP |
| Integrated Display |
6.4" 2K AMOLED Touchscreen |
6.4" 2K AMOLED Touchscreen |
| Built-in Processor |
8-core CPU (2.4 GHz) |
8-core CPU (2.4 GHz) |
| RAM |
32 GB LPDDR5 |
24 GB LPDDR5
|
| Internal Storage |
64 GB eMMC + 1 TB SSD |
64 GB eMMC + 512 GB SSD
|
| Battery / Endurance |
2× 5500 mAh (supports 60W PD 3.0) |
2× 5500 mAh (supports 60W PD 3.0) |
| Net Weight |
870 g (batteries included) |
870 g (batteries included) |
| Dimensions (H × D × W) |
233 × 180 × 72.8 mm |
233 × 180 × 72.8 mm |
| Output Formats |
STL, OBJ, PLY, 3MF, ASC |
STL, OBJ, PLY, 3MF, ASC |
Why choose the Rigil Lite version?
The Rigil Lite version maintains the ergonomics, dual optical camera system, 2K AMOLED display, 5MP texture camera, and the entire on-device software/algorithm suite of the top-of-the-line model.
Despite having a laser grid of 17+17 lines (instead of 25+25) and an internal storage of 512 GB SSD with 24 GB RAM, EinScan Rigil Lite offers the same maximum resolution of 0.05 mm and IR speed of 16 million points/s, positioning it as the best value-for-money solution for daily operations and industrial or reverse engineering applications.
The differences between the two models have been intentionally kept to a minimum:
EinScan Rigil Lite: 24 GB RAM, 512 GB SSD
EinScan Rigil Lite Limited Edition: 32 GB RAM, 1 TB SSD
The Limited Edition therefore offers more storage space and RAM for even smoother performance on large projects. However, the scanning performance itself, including scan speed and laser configuration, remains identical.
